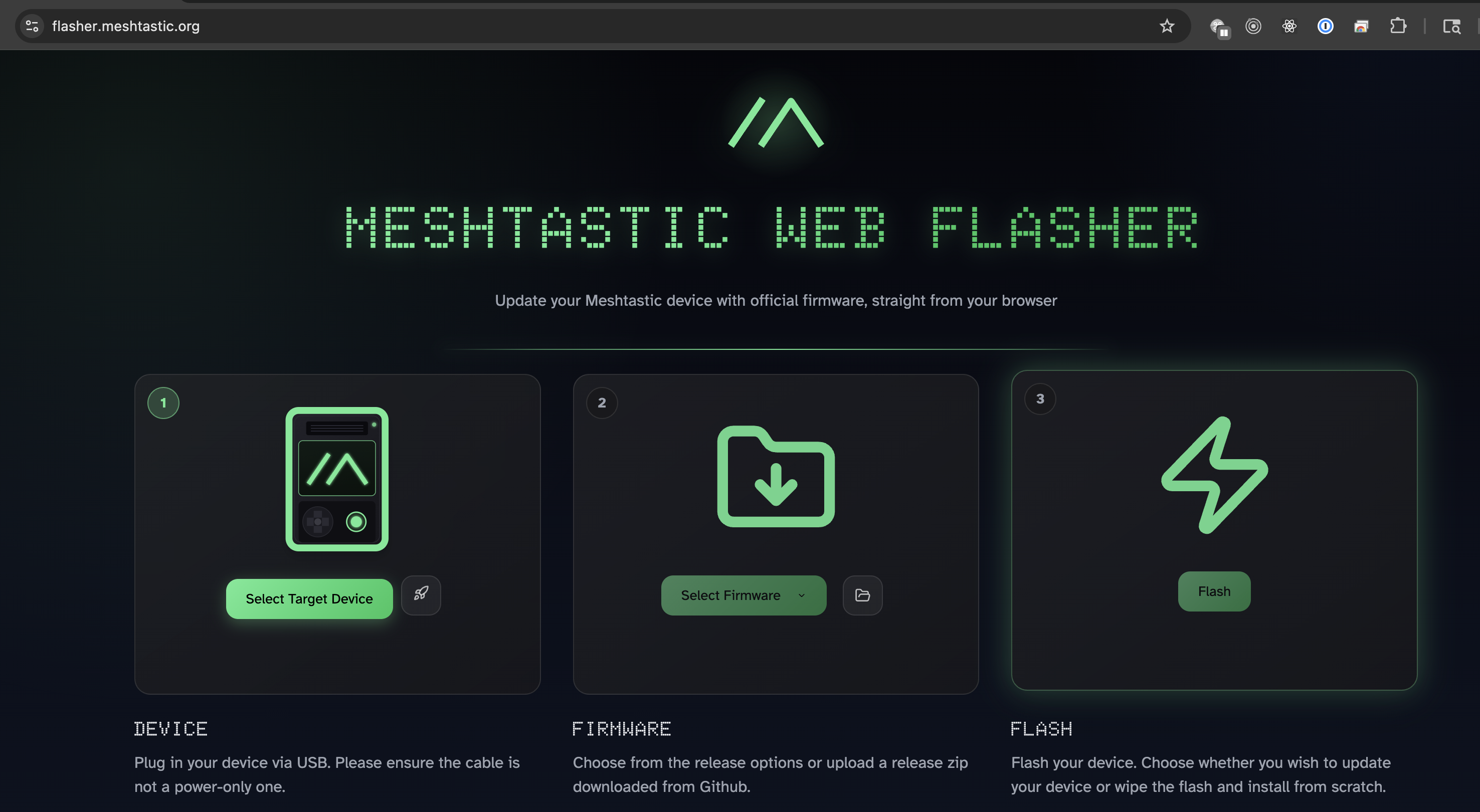

1. Flash the Device

Head over to https://flasher.meshtastic.org/ (using Chrome), pick your device and follow the steps.

2. Grab the Mobile App

Grab Meshtastic app from the App Store/Google Play. Open it up, and connect to your device.

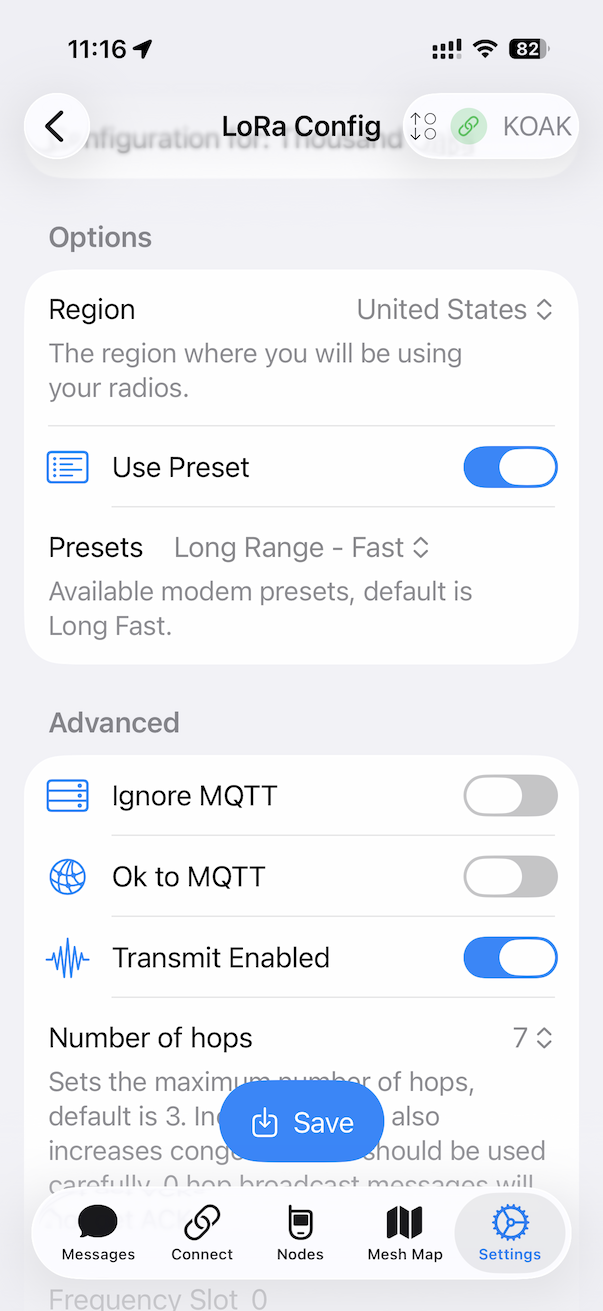

3. Configure LoRa

We're using the default settings. Set your region to United States, use preset: Long Range - Fast (we often refer to this as LongFast). We recommend maxing the hop count at 7 so you can reach more (default is 3 which usually isn't enough in SATX). Save, restart, reconnect.

4. (Optional) Configure MQTT

If you're far away, not able to reach nodes, want to connect to others a long distance, or just want a relay with internet, MQTT is an option that will allow messages to be relayed between device and our server. This either needs wifi/networking enabled on the device, or if your device doesn't have it, you can use your phone as a proxy

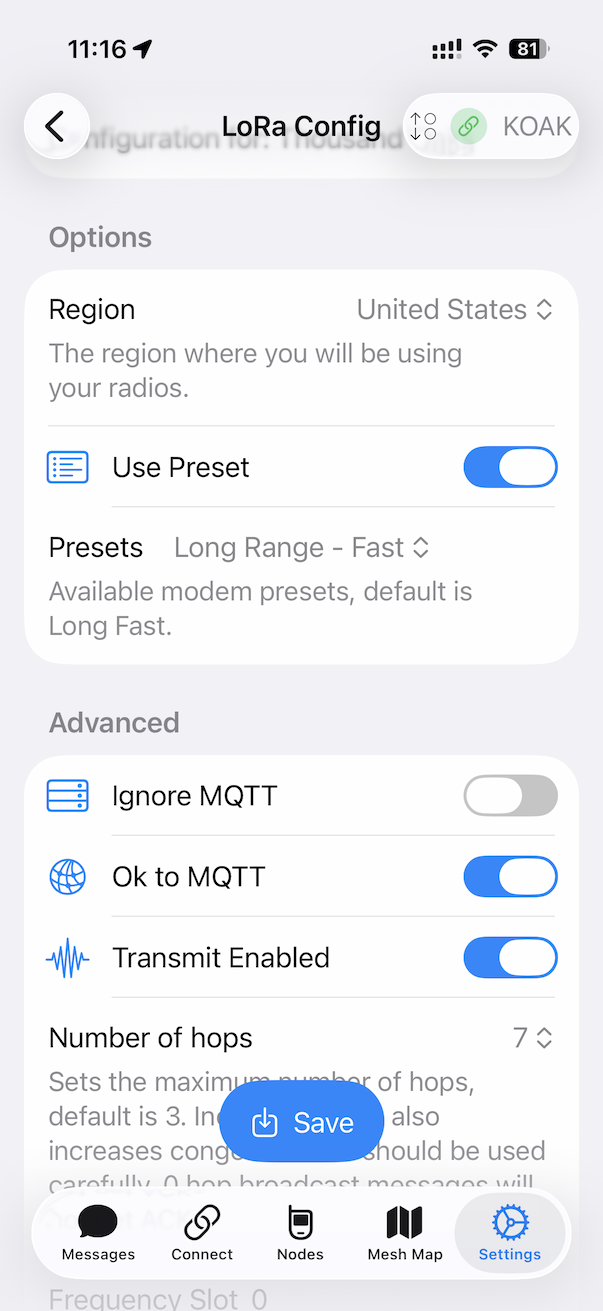

1. In Settings>LoRa, set Ok to MQTT. Save.

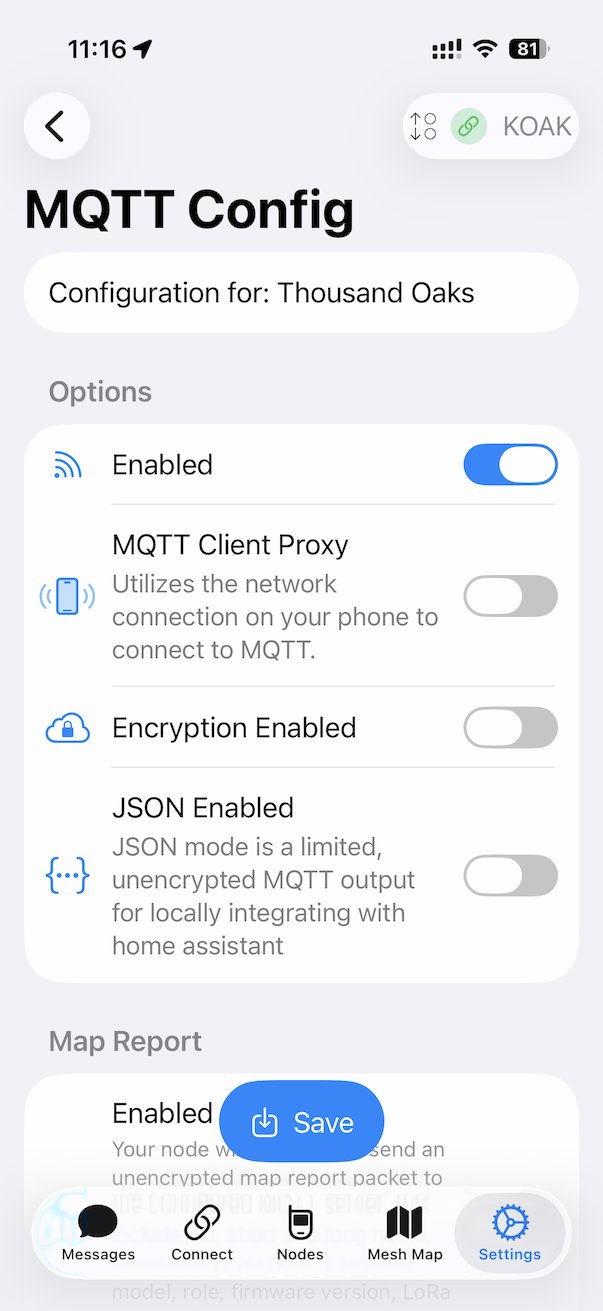

2. In Settings>MQTT, turn on enabled. If you don't have networking, enable MQTT Client Proxy to use your phone to connect it to the internet.

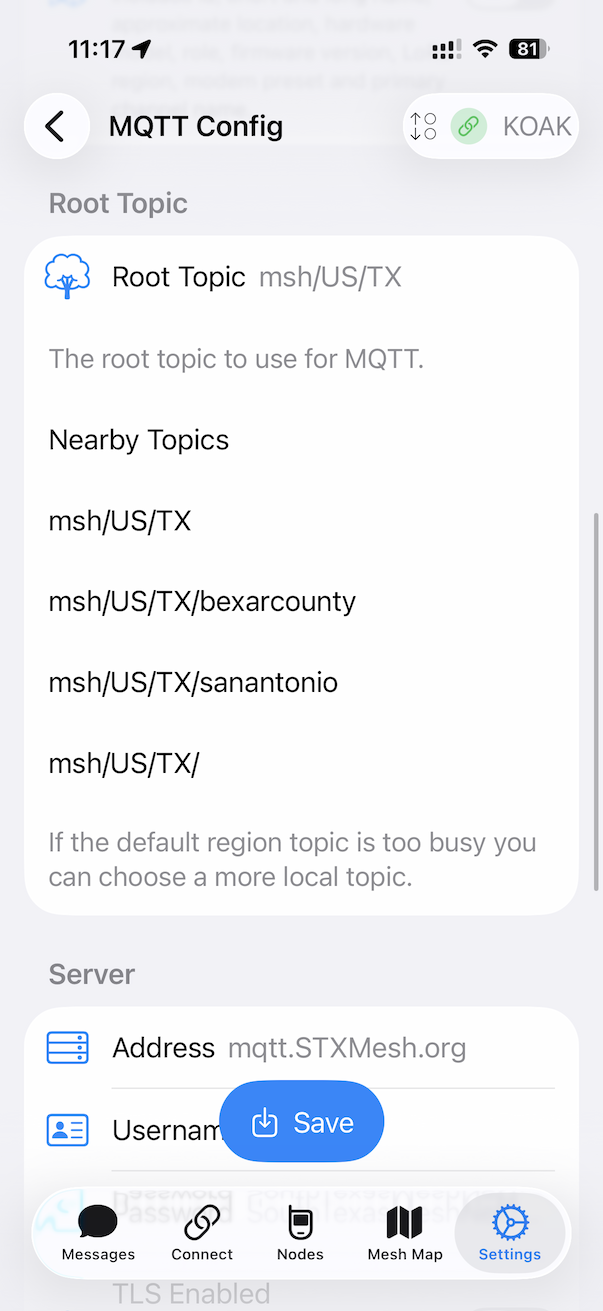

3. In Settings>MQTT, set root topic to msh/US/TX.

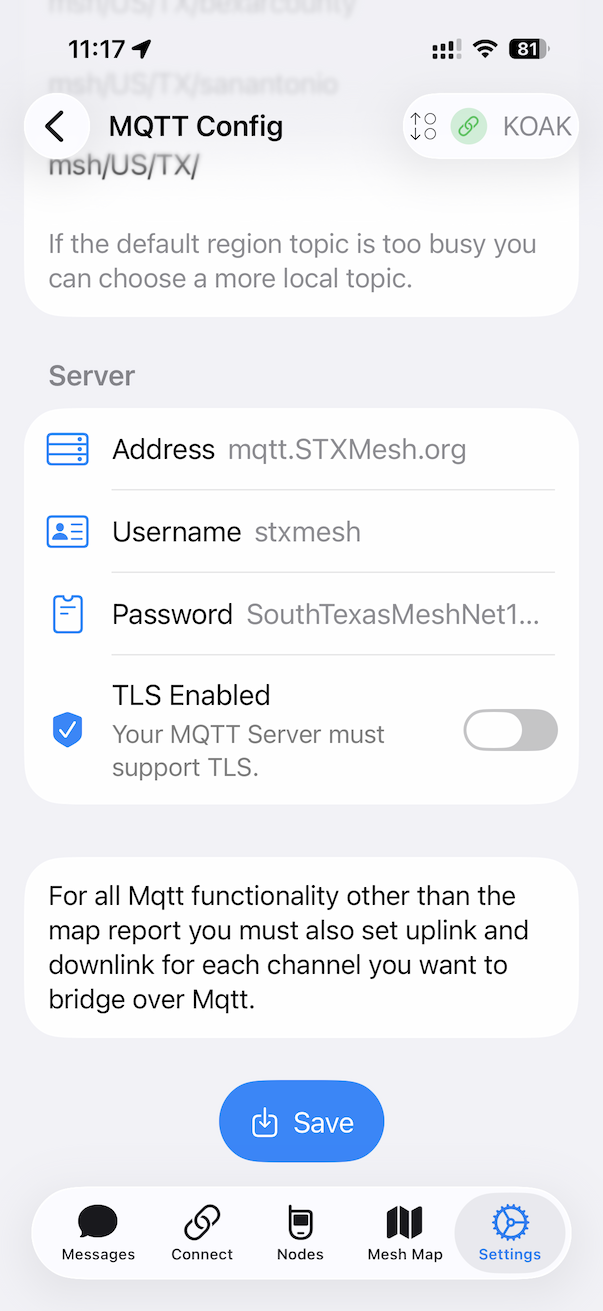

4. In Settings>MQTT, set server:

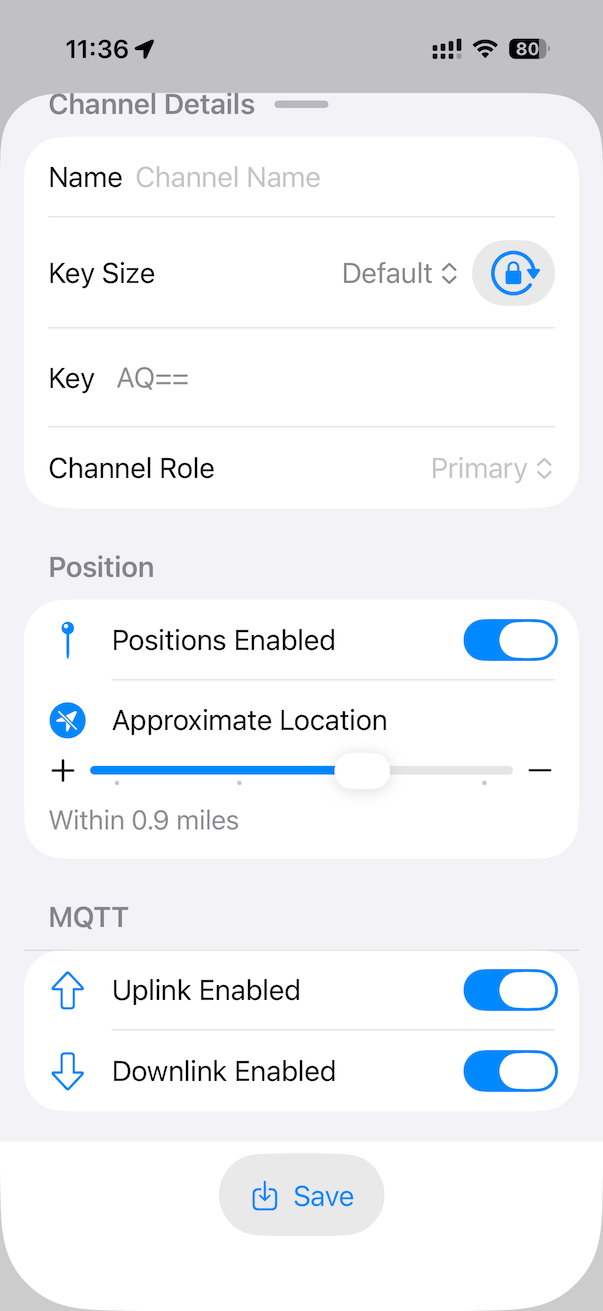

5. In Settings>Channels, go to each channel you want relayed. Enable uplink/downlink to have what you send go to MQTT server, what is sent to MQTT server get sent to channel. Save.
